How to import Contoso Demo Data to Dynamics Ax 2012 R3.

The setup contoso demo data for Dynamics Ax 2012 R3 is different from previous version. I remember, I used .dat file to load demo data into Dynamics Ax 2012 R2. Now DynamicsAX2012R3DemoData.exe available partner Resource.

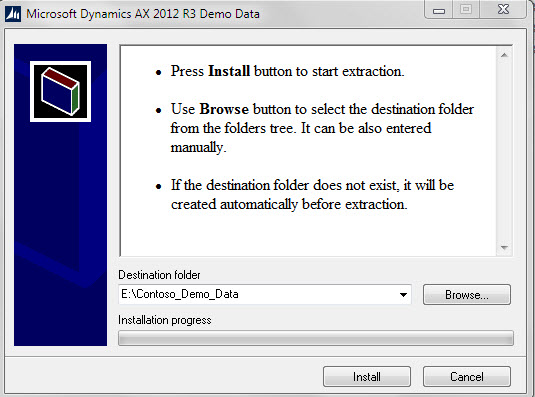

03-Demo setup
DynamicsAX2012R3DemoData.exe extracted files round 15 GB. Extracted folder contains three types of files. According to MSDN

  • Xml (A bcp data file that contains table data. Columns are separated by #|EOC|#. Rows are separated by #|EOR|#\n.)
  • Out (A bcp data file that contains the table metadata (column descriptions).
  • OutModel (This metadata includes all names and IDs of the table and its fields. This file also includes the elementType attribute, which stores the names and IDs of any Microsoft Dynamics AX tables, classes, or extended data types that are referenced by the table)

Installation of Test Data Transfer Tool:

The MSDN Described The Import export with Test Data Transfer Tool (beta) as follow.




Test Data transfer Tool is available on partner resource.

Go on following link





On login I found download page



There will be zip file downloaded.  On running I found following installation wizard.


11-Beta Setup


12-Beta Setup next


Setup run will be generated as following



Import Data Into Dynamics Ax 2012 R3 instance:

And import MetaDataXMLGenerator.xpo in dynamics Ax.



This xpo imports results a job inside job node under AOT.






This job will generate Metadata.xml. This Metadata.xml will be created in window temporary folder.

Path of file in metadata.xml can be get from infobox which will appear after successful run of job.



if you lost infobox,You can get temporary folder path with following command echo %temp%. where you can get Metadata.xml

Copied metadata.xml into [list] folder of test tool Data folder. If it already exists then overwrite it.

15-copy meta data

Go to services, and stop the Dynamics Ax service.



Now open command prompt. Go to directory where Test import tool is extracted.

Run the following command

DP.exe IMPORT “E:\Contoso_Demo_Data\DynamicsAXR3DemoData” MicrosoftDynamicsAx


If your SQL server configure with other than default instance then you must mentioned the server with instance name for example

DP.exe IMPORT “E:\Contoso_Demo_Data\DynamicsAXR3DemoData” MicrosoftDynamicsAx WIN-TLRNMFCLU9N\SQLSERVER



Please update path according to your installation.

09-Command Prompt


After running the command, you will find following window which describe the process by remaining table to number data, and number of error occurs during import.



This process takes hours and hours with respect to your machine. After completion, I found demo data inside my dynamics Ax 2012 R3.
